Tuotemerkki
Valmistajan osanumero
AT100MO
Takuu
?
24 kuukautta
EAN
5907772035993
QuMax Omni TCR100: lle
varastossa
?
101.83 €
101.83 €
Yksityiskohtainen kuvaus
Määrittely
Matkapuhelinverkko
Matkaviestinverkon luominen
4G (LTE)
Antenni
Antennin Suunnittelu
Omni
Matkapuhelinantennin Taajuusalue Ja Vahvistus
0.694 - 0.96 (GHz) 4 (dBi), 1.7 - 2.2 (GHz) 5 (dBi), 2.5 - 2.7 (GHz) 6 (dBi)
Matkapuhelinantennin Vahvistus
4 dBi, 5 dBi, 6 dBi
Säteen leveys
360 °
Polarisaatio
Pystysuora
Impedanssi
50 Ω
Liitin
Ethernet-liittimet
RJ45
Fysikaaliset Parametrit
Väri
Valkoinen
Materiaali
Alumiini, Lasikuitu, Polytetrafluorieteeni
Sisäänmenosuojakoodi
IP67

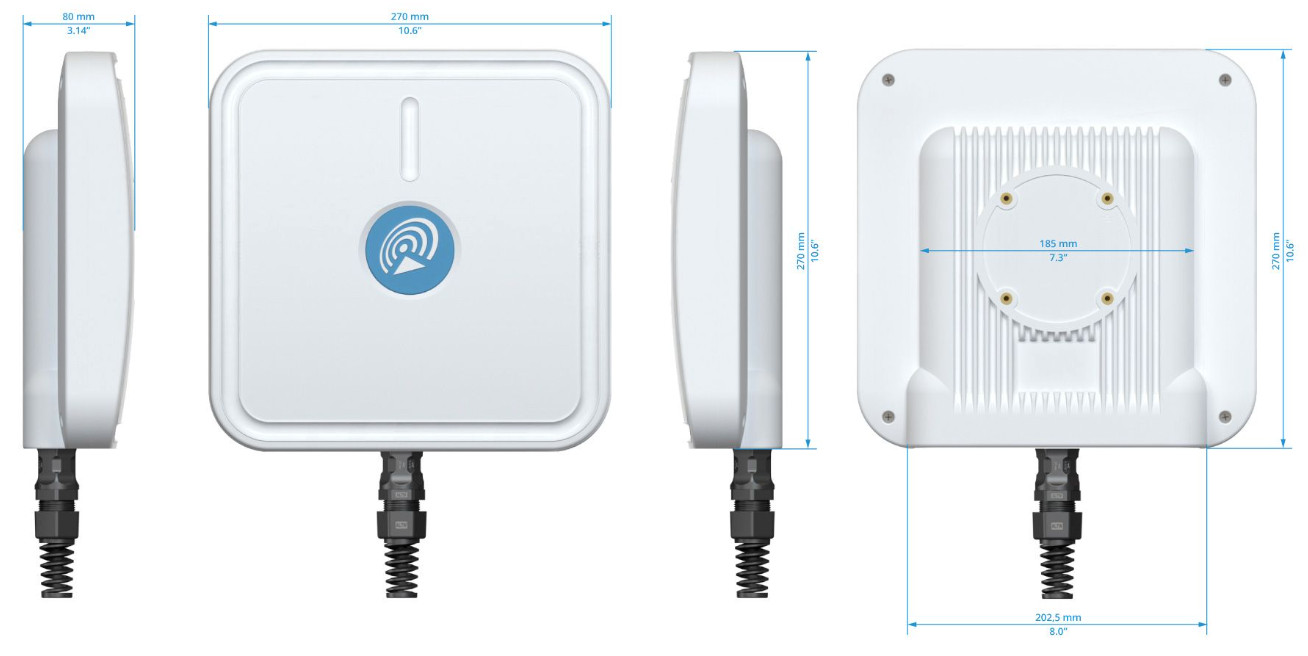

Mitat
272 x 276 x 80 mm
Paino
1.8 kg
Käyttölämpötila
-40 °C - 75 °C
Ympäristö
Ulkotiloissa

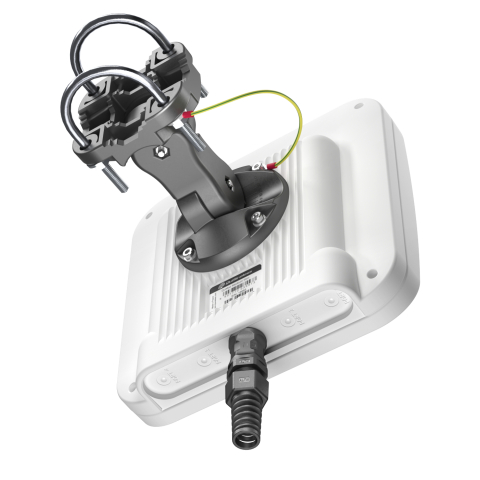

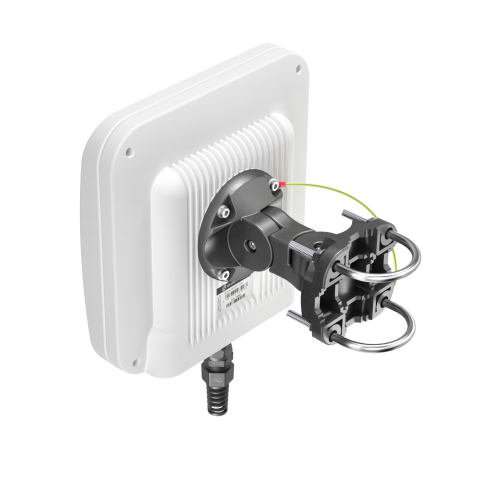

Kiinnitysmenetelmä
Seinäkiinnitys, Kattokiinnitys, Pylväskiinnitys
