QuPanel 5G/LTE Global MIMO 2x2, 5m
uusi tuote
uusi tuote
varastossa
?
178.24 €
178.24 €
Yksityiskohtainen kuvaus
Tekniset tiedot
Yhteensopivat tuotteet
Määrittely
Matkapuhelinverkko
Matkaviestinverkon luominen
4G (LTE), 5G (NR)
Antenni
Antennin Suunnittelu
Ohjauspaneeli
Matkapuhelinantennin Taajuusalue Ja Vahvistus
0.617 - 0.96 (GHz) 6 (dBi), 1.7 - 2.7 (GHz) 7 (dBi), 3.3 - 4.6 (GHz) 7 (dBi), 4.7 - 6.0 (GHz) 5.5 (dBi)
Matkapuhelinantennin Vahvistus
6 dBi, 7 dBi, 7 dBi, 5.5 dBi
Säteen leveys
80 °
VSWR
< 3
Impedanssi
50 Ω
Liitin
RF-liittimet
(2) SMA Male
Fysikaaliset Parametrit
Materiaali
Alumiini, ABS-muovi, Lasikuitu, Polytetrafluorieteeni
Sisäänmenosuojakoodi
IP67

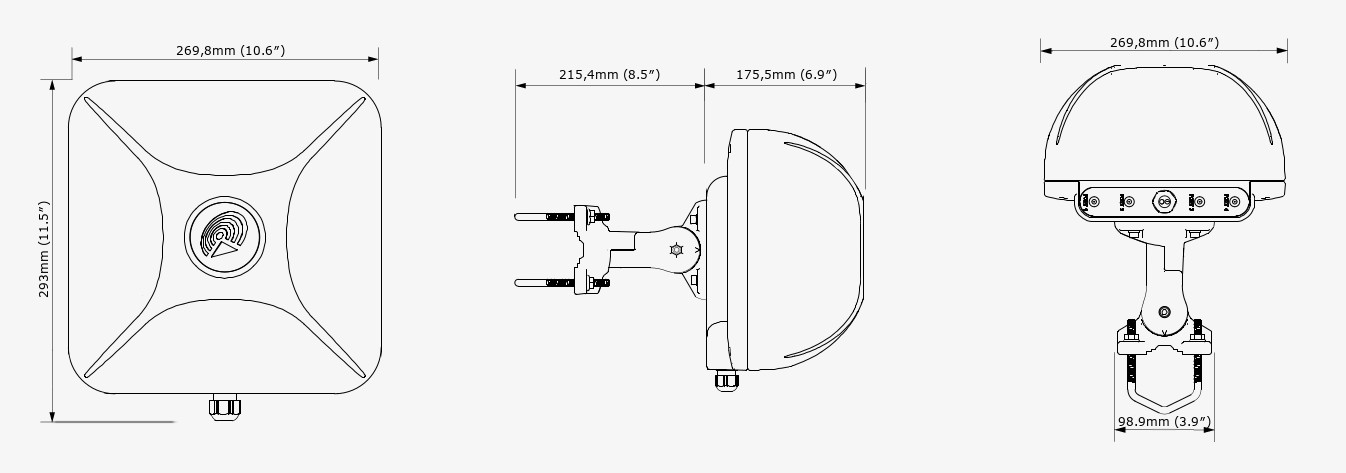

Mitat
486 x 292 x 106 mm
Paino
2.8 kg
Käyttölämpötila
-40 °C - 80 °C
Ympäristö
Ulkotiloissa
Kiinnitysmenetelmä
Seinäkiinnitys, Pylväskiinnitys
