Tuotemerkki
Valmistajan osanumero
PR1KS536
Takuu
?
24 kuukautta
EAN
4779051840649

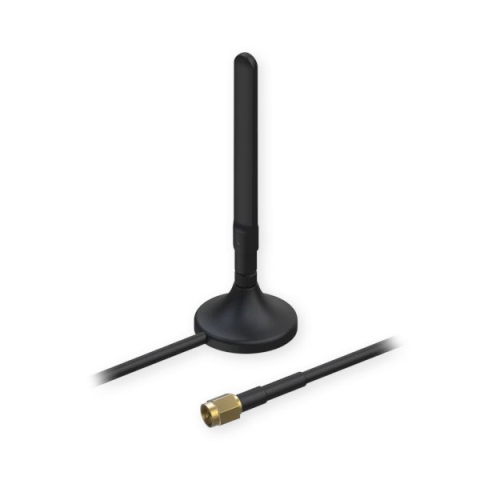

Teltonika 5G Mobile Magnetic SMA Antenna
Certified Teltonika Engineers
Official Teltonika Distributor
varastossa
?
12.45 €
12.45 €
Certified Teltonika Engineers
Official Teltonika Distributor
Yksityiskohtainen kuvaus
Tekniset tiedot
Yhteensopivat tuotteet
Määrittely
Matkapuhelinverkko
Matkaviestinverkon luominen
5G (NR)
Antenni
Antennin Suunnittelu
Omni
Matkapuhelinantennin Taajuusalue Ja Vahvistus
0.617 - 0.960 (GHz) 3.6 (dBi), 1.40 - 2.69 (GHz) 3.6 (dBi), 3.30 - 5.90 (GHz) 3.6 (dBi)
Matkapuhelinantennin Vahvistus
3.6 dBi, 3.6 dBi, 3.6 dBi
Polarisaatio
Lineaarinen
Kaapelin Pituus
3 m
VSWR
< 3.5
Impedanssi
50 Ω
Liitin
RF-liittimet

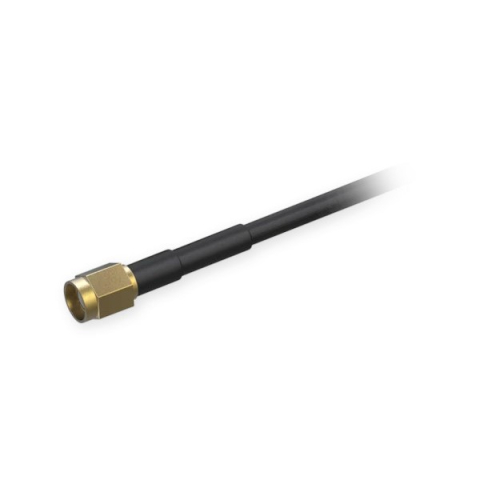

(1) SMA Male
Fysikaaliset Parametrit
Sisäänmenosuojakoodi
IP33
Paino
0.15 kg
Käyttölämpötila
-20 °C - 65 °C
Ympäristö
Sisä
Kiinnitysmenetelmä
Magneettinen
Pakkaus Sisältää
Yksiköt
1 kpl
Ostetaan usein yhdessä
Toimitus
Maailmanlaajuinen toimitus.
1-2 päivän pikatoimitus.
Edullinen toimitus kuriirin tai postin kautta.
Tilaukset lähetetään 24 tunnin kuluessa arkipäivinä.
Maksutavat
Nopeat ja turvalliset maksut kortilla.
Tilisiirrot euroissa tai valuutoilla USD ja GBP.
Erikoistarjouksia tukkumyyntiin.
Takuu ja palautukset
30 päivän palautusoikeus.
Online RMA-tila takuulle, vaihdoille ja korjauksille.
Saatavilla laajennettu takuu.
Arvostelut ja arviot
Tuotteen luokitus
